10.Radio zone design system

[Applicable services]

• Service order reception

  Quick survey of line-of-sight (LOS) between customer site and any nearby APs.

• Radio zone design

  Detailed study of coverage area from AP

  Calculation of mutual interference to/from other cells and rain attenuation margin

[Features]

• Product cost reduction is achieved by taking advantage of commercial software.
• Accurate link design is accomplished through NTT’s accumulated propagation knowledge and techniques.
• Simple Graphical User Interface (GUI) for easy operation at customer front.
• Quick calculation is achieved by function optimization.
• Tree height data can be easily added to 3D map data base by using tree photograph data.
• Improved address reference functions.

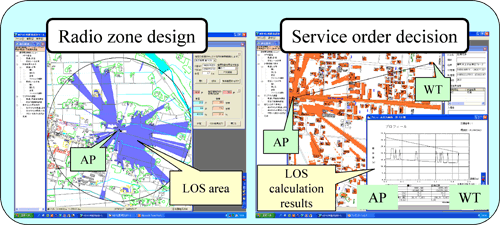

Fig. 10 Radio zone design system
